Clustrix Configuration Manager Example

This notebook demonstrates how to use the %%clusterfy magic command to manage cluster configurations interactively.

[ ]:

# Import clustrix - this automatically loads the magic command and displays the widget
import clustrix

# The configuration widget should appear above when you run this cell!
# It provides an interactive interface for managing cluster configurations.

Using the Configuration Widget

The %%clusterfy magic command creates an interactive widget for managing cluster configurations:

[ ]:

%%clusterfy
# The widget interface will appear above this cell
# You can interact with it to:
# - Create new configurations
# - Edit existing configurations
# - Apply configurations to your session
# - Save/load configurations to/from files

# Widget Screenshots and Examples:
#

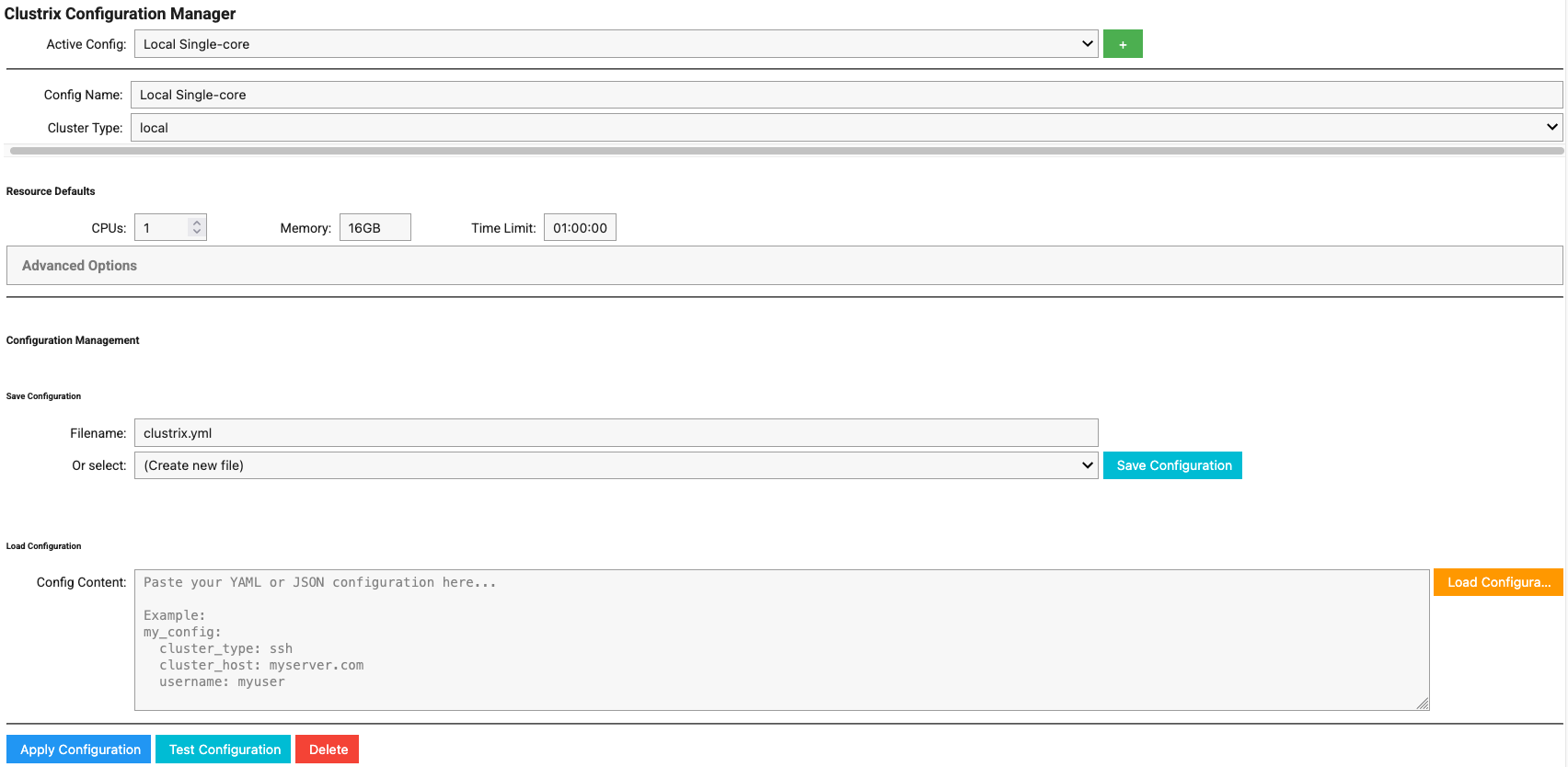

# When you run this cell, the widget will display with the default "Local Single-core" configuration:
# ![Default Widget View](../_static/img/screenshots/widget_default.png)
#

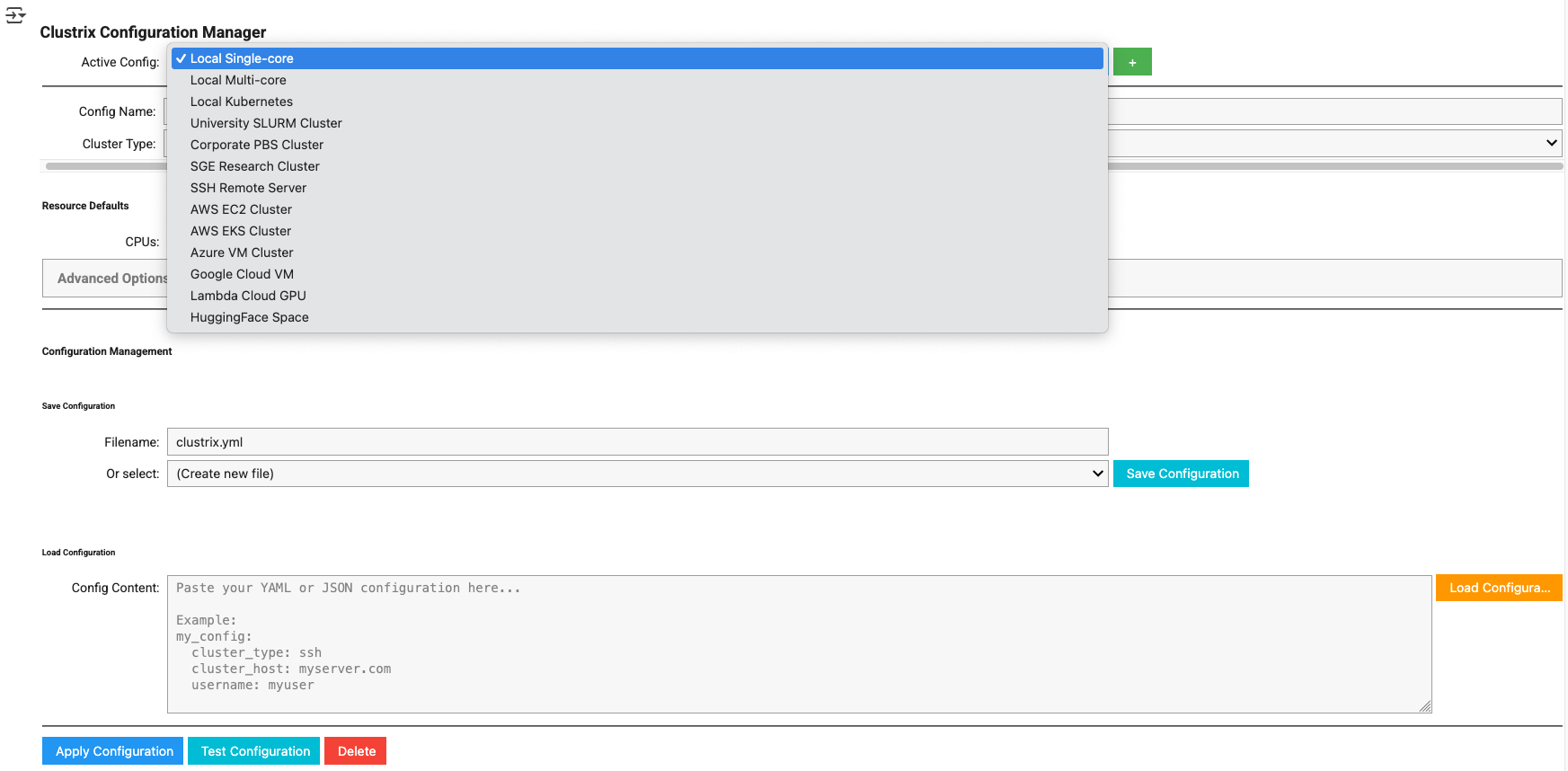

# The dropdown menu shows all available configuration templates:
# ![Configuration Dropdown](../_static/img/screenshots/widget_dropdown.png)
#

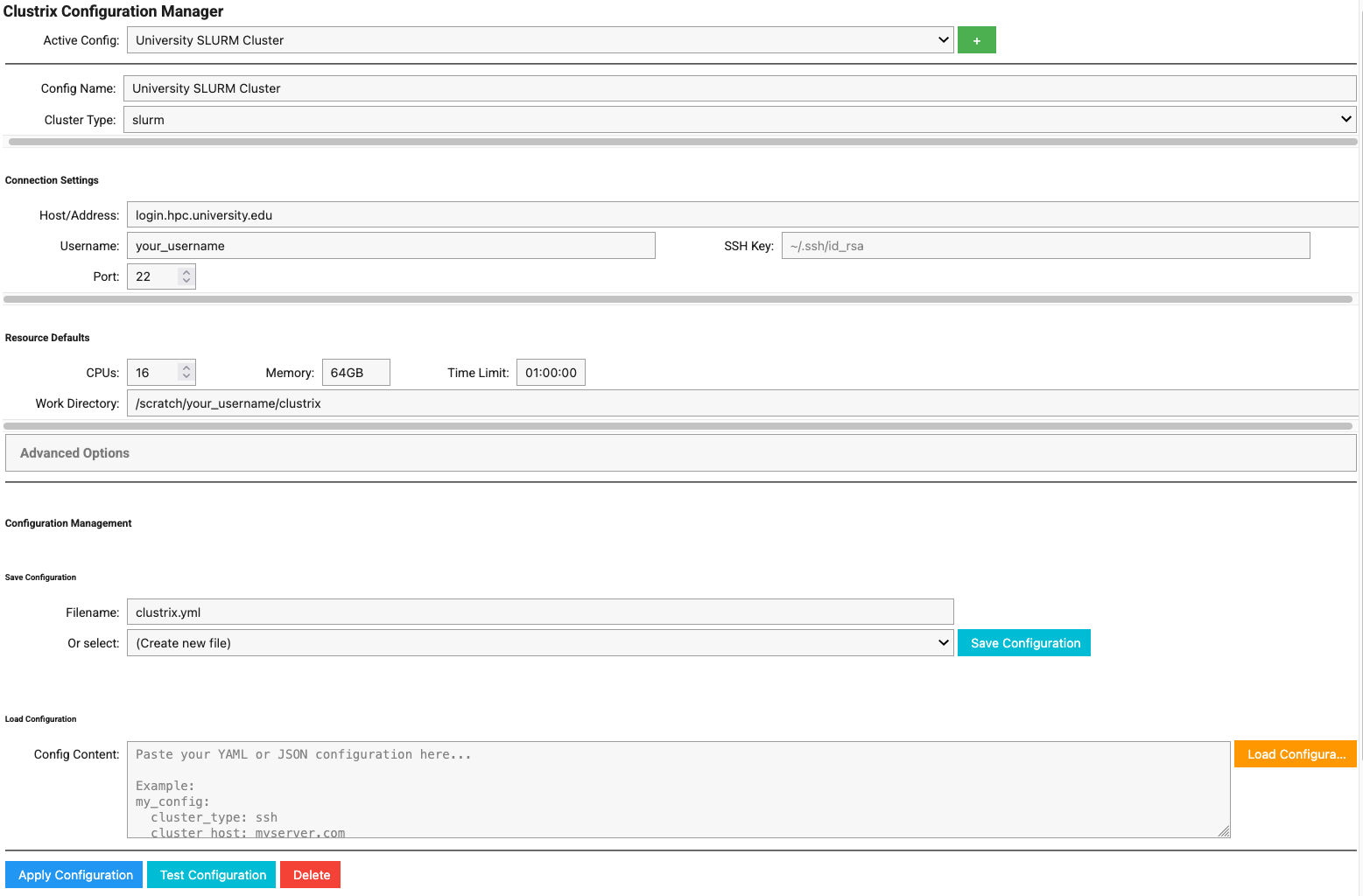

# Example SLURM cluster configuration with basic settings:
# ![SLURM Basic Configuration](../_static/img/screenshots/widget_slurm_basic.png)
#

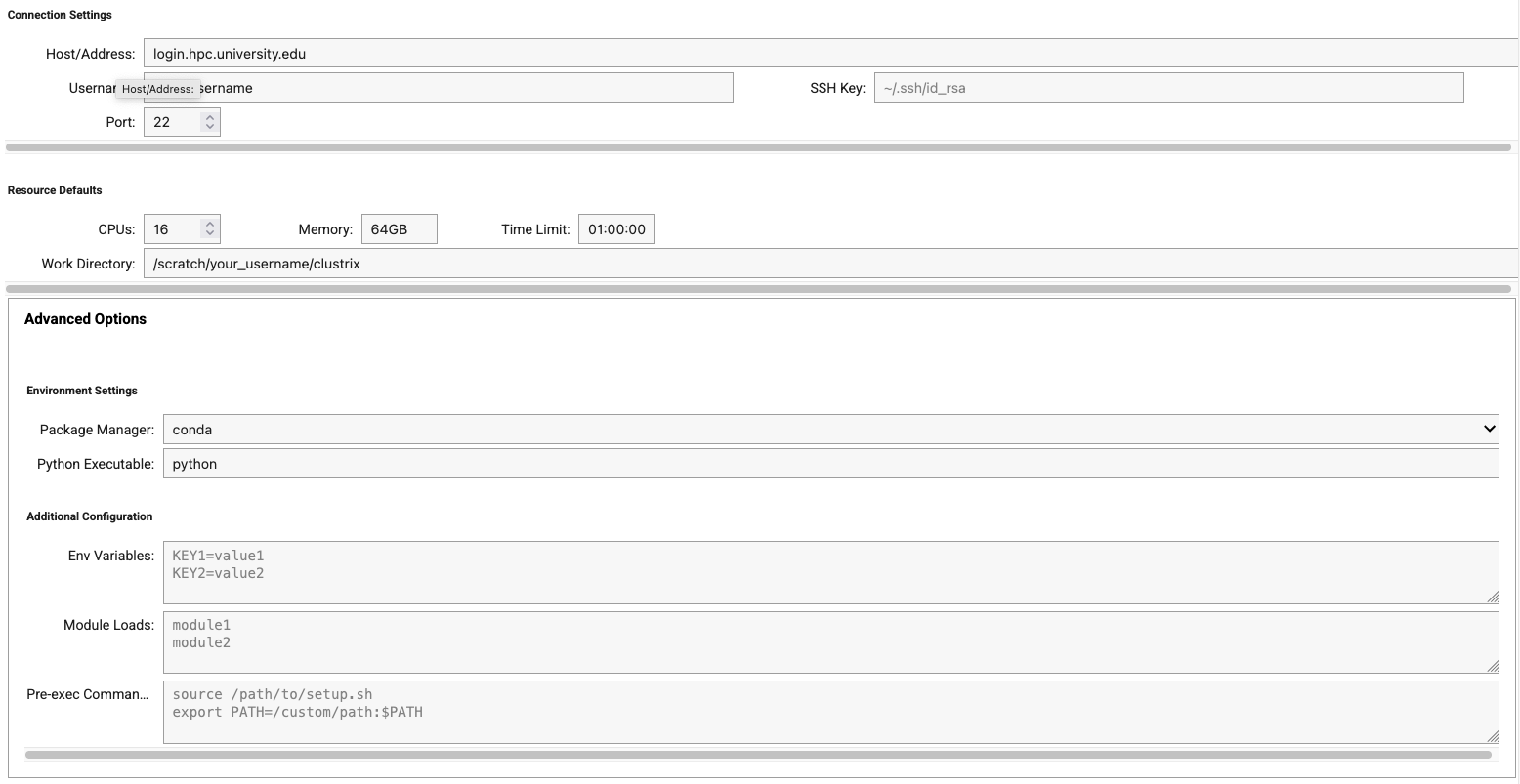

# Advanced settings reveal additional options:
# ![SLURM Advanced Configuration](../_static/img/screenshots/widget_slurm_advanced.png)

Widget Features

1. Configuration Selection

  • Use the dropdown to select between different configurations

  • Default configurations include local, AWS, GCP, Azure, SLURM, and Kubernetes options

2. Configuration Management

  • New Config: Create a new configuration

  • Delete Config: Remove the selected configuration

  • Apply Config: Apply the selected configuration to your current session

3. Configuration Fields

  • Name: Friendly name for the configuration

  • Description: Detailed description of the cluster

  • Cluster Type: local, ssh, slurm, pbs, sge, or kubernetes

  • Host: Hostname or IP address (for remote clusters)

  • Username: SSH username (for remote clusters)

  • SSH Key: Path to SSH private key

  • Work Dir: Remote working directory

  • Default Cores: Default number of CPU cores

  • Default Memory: Default memory allocation

  • Default Time: Default time limit

4. Save/Load Configurations

  • Save configurations to YAML or JSON files

  • Load configurations from files

  • Share configurations with team members

Cloud Provider Examples

The widget includes comprehensive support for cloud providers with dynamic field visibility and intelligent defaults.

Google Cloud Platform

When configuring GCP, only relevant fields are displayed:

GCP Configuration

Lambda Cloud GPU Instances

The widget provides specialized support for GPU-optimized Lambda Cloud instances:

Lambda Cloud Configuration

Key Cloud Features

  • Dynamic Field Visibility: Only shows fields relevant to the selected provider

  • Auto-populated Dropdowns: Instance types, regions, and zones populated automatically

  • Provider-specific Options: Each cloud provider has tailored configuration options

  • Cost Monitoring: Built-in cost tracking for all cloud providers

Example: Using a Configuration

After applying a configuration using the widget, you can use it with the @cluster decorator:

[3]:

from clustrix import cluster
import numpy as np

@cluster(cores=4, memory="8GB")
def matrix_computation(size=1000):
    """Example computation that will run on the configured cluster."""
    A = np.random.rand(size, size)
    B = np.random.rand(size, size)
    C = np.dot(A, B)
    return np.mean(C)

# This will run on whatever cluster configuration is currently active
# result = matrix_computation(2000)

Programmatic Configuration

You can also check and modify configurations programmatically:

[4]:

# Check current configuration
current_config = clustrix.get_config()
print(f"Current cluster type: {current_config.cluster_type}")
print(f"Default cores: {current_config.default_cores}")
print(f"Default memory: {current_config.default_memory}")

Tips

  1. Save your configurations to a file for easy sharing and version control

  2. Use descriptive names for your configurations to easily identify them

  3. Test configurations with small jobs before running large computations

  4. Keep SSH keys secure and use appropriate file permissions

  5. Document cluster-specific requirements in the description field
